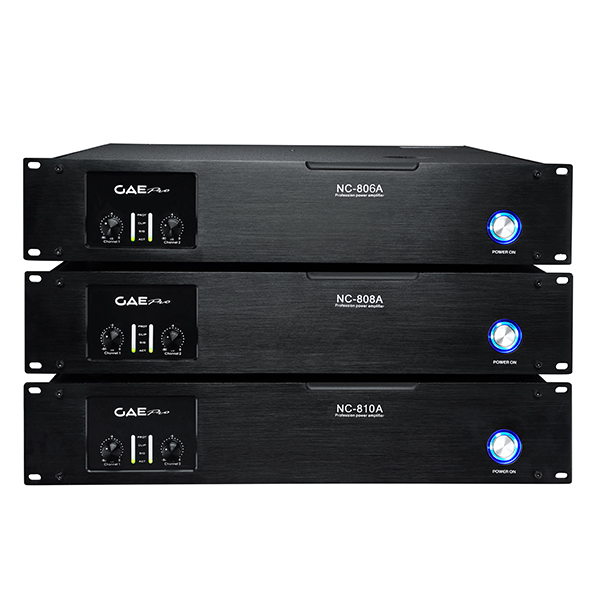

NC 係列專業功率放大器
Professional Power Amplifier
產品特點 FEATURES
NC（806A、808A、810A）係列功放是一係列高性價比、高可靠性的功率放大器，選用優質的原件，通過采用創新的電路設計，配合現代化的製作流程及嚴謹的質量控製流程，從而能使產品提供優異的音質表現、強勁的功率輸出以及具備很高的性價比。
(本網站產品參數外觀如有所更改，恕不另行通知，網站產品均以實物為準，產品參數僅供參考，本公司保留最終解釋權。)

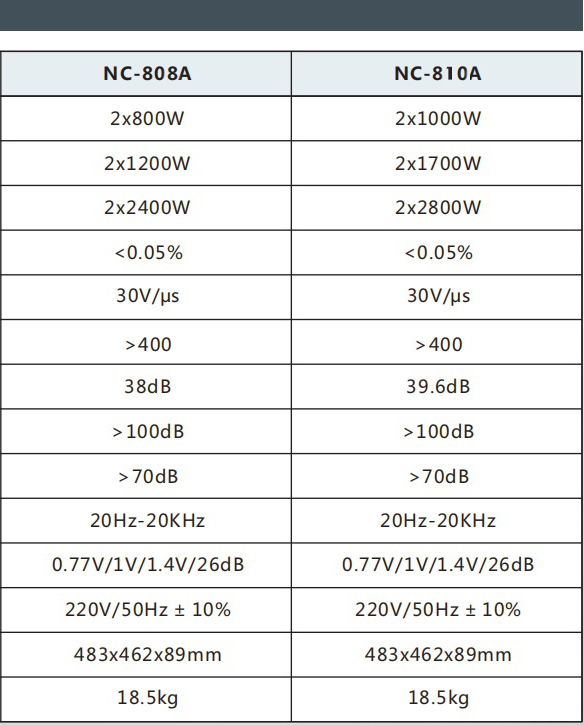

| NC SERIES SPECIFICATION | NC-806A | NC-808A | NC-810A | |
| @8Ω Output Power/CH | 2*600W | 2*800W | 2*1000W | |
| @4Ω Output Power/CH | 2*900W | 2*1200W | 2*1500W | |
| @2Ω Output Power/CH | 2*1020W | 2*1360W | 2*1700W | |
| @8Ω Bridge Output Power | 2*1800W | 2*2400W | 2*3000W | |
| Frequecy Response | 20Hz-20KHz±0.5dB | |||
| THD+N(20Hz-20KHz) | <0.05% | <0.08% | <0.08% | |
| Slew Rate | 30V/μs | 30V/μs | 30V/μs | |
| Damping Factor（8Ω，20Hz1KHz） | 400 | |||
| Volatage Gain (rated power@8Ω) | 38.2dB | 38.2dB | 38.2dB | |
| Signal to Noise Ratio | >100dB | >100dB | >100dB | |
| Cross Talk(20Hz-20KHz) | >70dB | >70dB | >70dB | |
| Input Sensiivity (8Ω) | 0.775V | |||
| Input Impedance | 20KΩbalance/10kΩunbalance | |||
| Cooling | Two variable speed fans,rear-to-front air flow | |||
| Connectors(each channel) | Input:XLR Output:Speakon or connector | |||
| Controls | Front:AC switch,Ch1 and Ch2 gain knobs Rear:Stereo/Paralle/Bridge switch | |||
| Indicators | Front:POWER-Green LED,SIGNAL-Green LED, CLIP-Orange LED,PROT-Red LED | |||
| Amplifier Protection | shortcircuit,thermal,overload,cliplimiter,DCvoltage, softstar, ultrasonic and RF protection | |||
| Net Weight/Gross Weight | 16.5Kg/20.5Kg | 18.5Kg/22.5Kg | 19Kg/23Kg | |
| Dimensions | 483mm*462mm*89mm | |||
| Packing Dimensions | 610mm*575mm*170mm | |||
| Power Requirements | 220V/50Hz | |||
